Nothing on a thirty-year-old machine wears out from being played. What fails is time — a capacitor that has dried, a save battery that went flat in 2004, a laser that has quietly lost its power — and then the harder problem: the picture it was built to send has nowhere left to go.
SHELF 06 · CASE 02 · HARDWARE
Almost nothing on these machines is a wear part. The failures are chemical, and chemistry does not care whether the box has been played or sat in a loft since 1998.

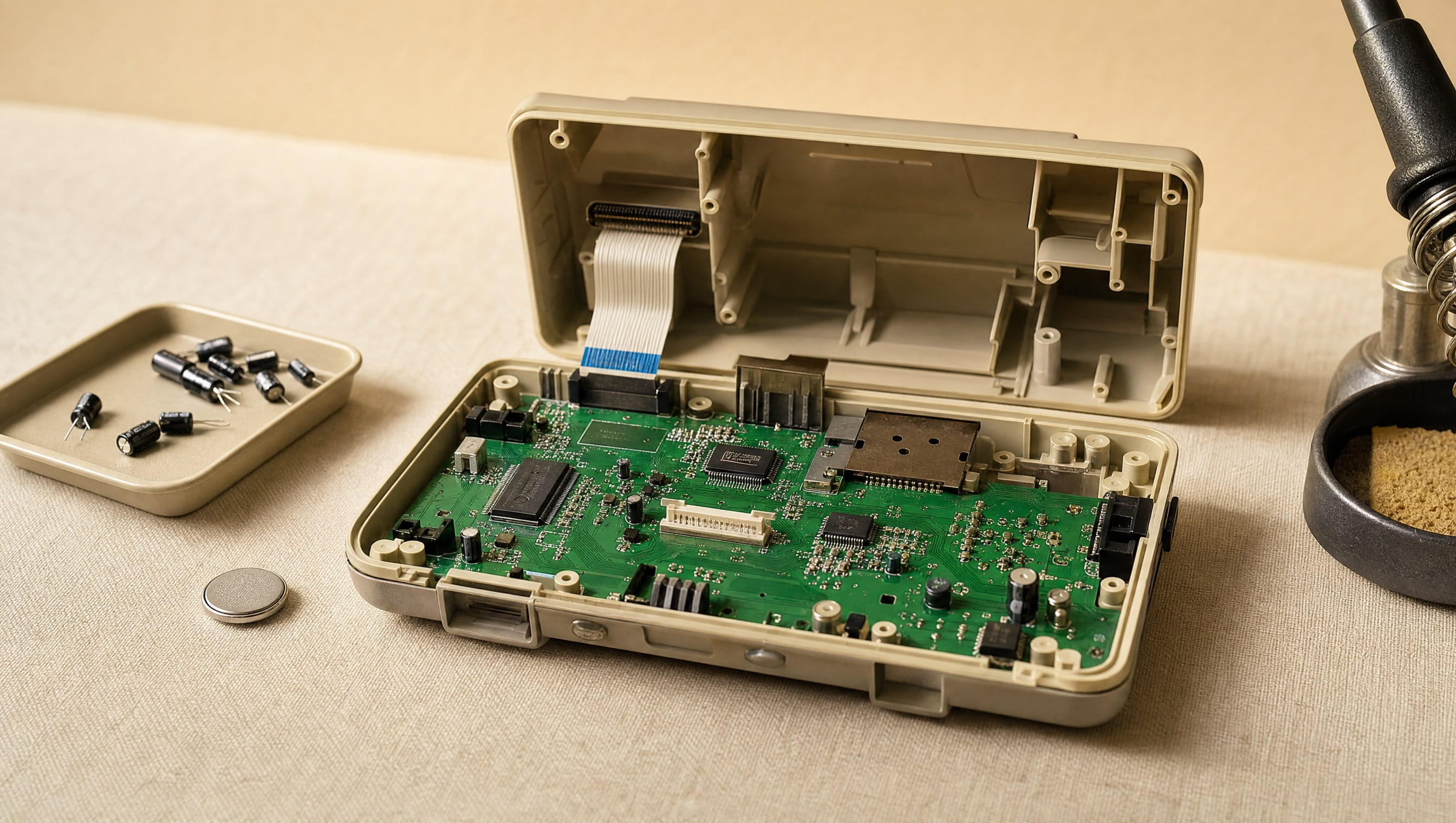

Start with the capacitors. Electrolytics are the one component fitted with a shelf life: the fluid inside dries or creeps out, and when it creeps it takes the copper under it with it. On a board built in 1990 that is a slow drift — muddy sound, a picture that rolls when the room is cold, a machine that needs three tries to boot. On the surface-mount electrolytics used in early-nineties handhelds and disc consoles it is not a drift at all. It is a leak, and left alone it eats traces you then have to rebuild by hand.
Then the batteries. Save data on cartridge-era hardware lives in volatile memory held up by a coin cell soldered to the board, rated for about ten years and now more than thirty into the job. Most are long dead. The ones that are not are the ones worth acting on first, because a cell that dies gracefully takes a save file with it, and a cell that dies badly leaks onto the board beside it.
Then the moving parts, which only the disc machines have. Laser diodes lose optical power with hours, not with age, so a heavily played drive reads a pressed disc and refuses a burned one long before it refuses everything. Belts perish into tar. Sled grease sets hard. All three are cheap; all three are the reason a working machine costs three times a dead one.
Which is the whole buying argument. Buy working. A tested unit with a clear photograph of a live picture on a screen is worth every pound over an untested one, because "untested" has meant the same thing in every listing since the internet began: nobody wanted to find out. Restore the machine you already own and have a reason to keep — that is where the hours are worth spending, and it is where a mistake costs you your own thing rather than a rare one.
Work in a fixed order on arrival, before you take anything apart. Look inside the battery compartments of the console and every controller; a leaked cell is the one fault that gets worse in a drawer. Power it with no media in and watch for a picture. Then media, then saves, then every port and every controller input including the sticks, which drift. Five minutes, and you know what you have bought.
And keep it reversible. A recap, a battery, a belt and a laser are maintenance — the machine ends up as it left the factory, only younger. Cutting a case, drilling a panel or lifting a chip to fit an output board is a decision about a finite object, and it should be made on the common revision you can replace, never on the one you would be sad to lose.
